Machine learning (ML) is now a key part of many industries. However, as ML models become more complex and workloads grow, managing the infrastructure and processes for ML can be difficult. This is where Kubeflow helps. Kubeflow is a tool built for Kubernetes that makes it easier to set up, manage, and scale machine learning workflows.
In this blog, we’ll explore:
What is Kubeflow?
Kubeflow is an open-source platform that aims to simplify the process of running machine learning (ML) workloads on Kubernetes. It provides a set of tools, libraries, and integrations to help manage the entire lifecycle of machine learning — from data preparation to model training, testing, deployment, and monitoring.
Since it is built on Kubernetes, it leverages the powerful features of Kubernetes for scaling, resilience, and efficient resource utilization. If you’re already familiar with Kubernetes, you’ll find that Kubeflow can help you easily integrate and scale ML workloads within Kubernetes environments.
Why Use Kubeflow?
Here are some of the key reasons why Kubeflow has become a popular choice for deploying machine learning on Kubernetes:
- Scalability: With Kubernetes at its core, the platform automatically handles scaling, making it easier to manage both small and large ML workloads.
- Reproducibility: The platform ensures that the entire ML pipeline is reproducible, meaning you can rerun experiments consistently with the same data and parameters.
- Collaboration: It provides features to share experiments, results, and models, making it easier for teams to collaborate on machine learning projects.
- Flexibility: It supports a wide range of ML frameworks (TensorFlow, PyTorch, MXNet, etc.) and integrates with other tools like Jupyter notebooks, Seldon, and more.
- End-to-End Pipeline: It provides tools to automate the ML pipeline, including data preprocessing, training, model evaluation, deployment, and monitoring.
Also Read: Our blog post on Machine Learning Algorithms & Use Cases

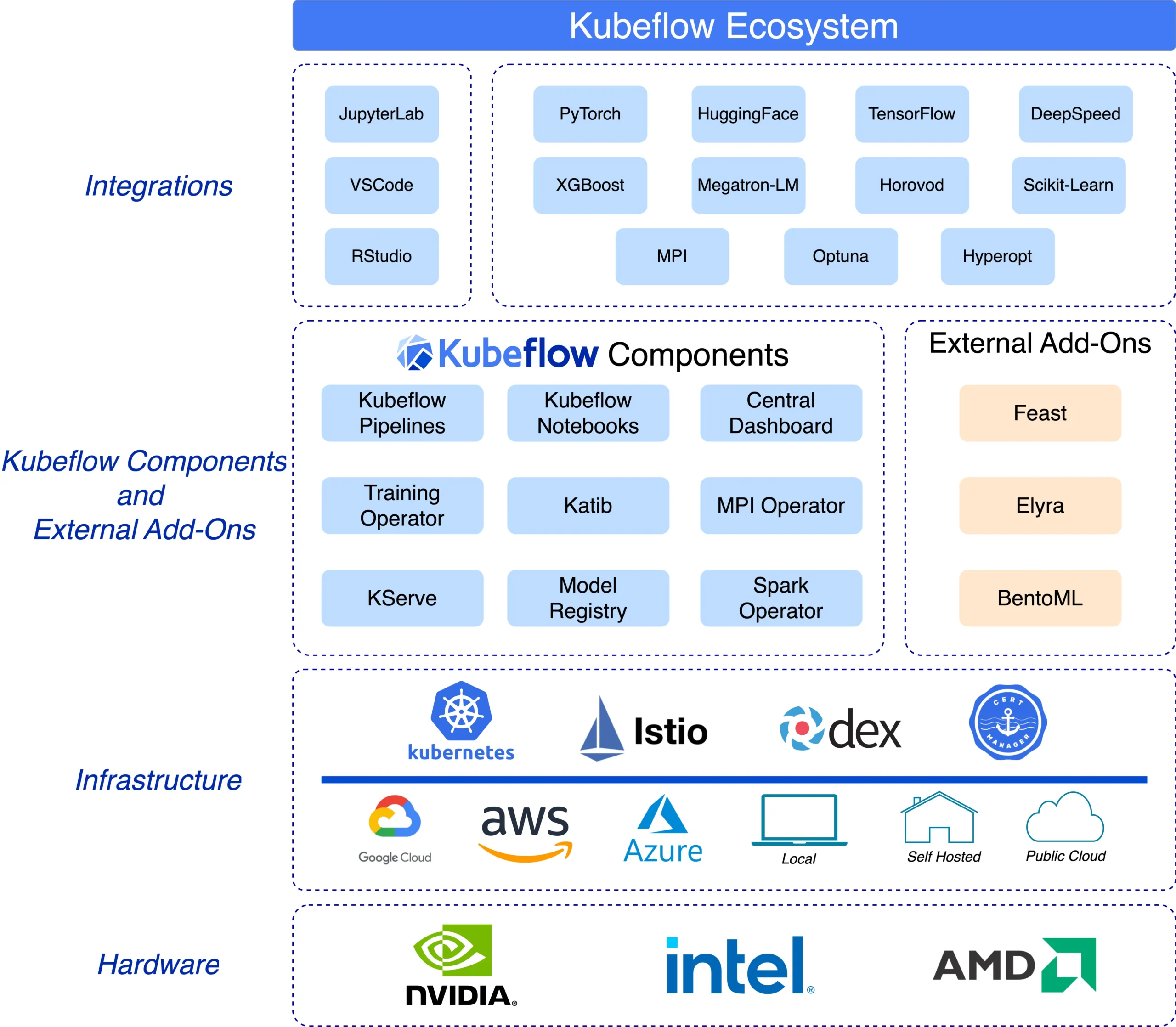

Key Components of Kubeflow
It consists of several components, each serving a specific purpose in the ML workflow:
- Kubeflow Pipelines: A central component for managing and automating ML workflows. Pipelines help you define, deploy, and monitor the entire process of training and serving ML models.
- KFServing: A component to deploy and serve machine learning models in a Kubernetes environment. KFServing provides autoscaling, versioning, and model management features.
- JupyterHub: A web-based environment for interactive development and experimentation with Jupyter notebooks. It allows data scientists to build, test, and share models.
- Katib: A hyperparameter tuning component for automating the optimization of model parameters.
- Training Operators: These are pre-built components that allow you to run training jobs using different frameworks like TensorFlow, PyTorch, and others.
- KFTraining: This component allows you to run distributed training across multiple machines or GPUs.
Setting Up Kubeflow on Kubernetes
Now that you understand what Kubeflow is and why it’s useful, let’s dive into the steps to set up Kubeflow on your Kubernetes cluster.
Step 1: Prerequisites
Before installing Kubeflow, make sure you have the following:
- A Kubernetes Cluster: You can use a managed Kubernetes service like , Amazon Elastic Kubernetes Service (EKS), Azure Kubernetes Service (AKS) or Google Kubernetes Engine (GKE), or set up your own Kubernetes cluster using kubeadm.
- kubectl: The Kubernetes command-line tool for interacting with your cluster.
- Helm: Helm is a package manager for Kubernetes that simplifies deploying applications to Kubernetes clusters.
- Kustomize: A tool to customize Kubernetes resources.
Step 2: Install Kubeflow Using the Manifests
Kubeflow is deployed using YAML manifests that configure the required Kubernetes resources. The easiest way to install it is by using kubectl along with the official manifests.
1. Clone the git repository:
git clone https://github.com/kubeflow/manifests.git cd manifests
2. Deploy the Kubeflow components: To install Kubeflow on your cluster, execute the following commands:
kubectl apply -k ./kubeflow
This command applies the necessary resources to your Kubernetes cluster.
3. Check the status of the Kubeflow components:
kubectl get pods -n kubeflow
To know more about Kubernetes Pods, Click Here.
Step 3: Access Kubeflow Dashboard
Once it is deployed, you can access the dashboard, which is a web interface for interacting with your Kubeflow components.
1. Set up port forwarding:
To access the dashboard, use kubectl to forward the Kubeflow services to your local machine:
kubectl port-forward svc/istio-ingressgateway -n istio-system 8080:80
2. Access the dashboard:
Open a browser and go to http://localhost:8080. You should see the dashboard where you can start managing your machine learning pipelines and models.
Step 4: Create Your First ML Pipeline
Kubeflow Pipelines allow you to define, manage, and monitor end-to-end ML workflows. Here’s a simple example of how you can create a pipeline.
1. Create a Pipeline:
In the dashboard, you can create a pipeline using the Python SDK. Install the Kubeflow Pipelines SDK:
pip install kfp
Then, create a Python file (my_pipeline.py) with a basic pipeline definition:
import kfp
from kfp import dsl
@dsl.pipeline(
name='Simple ML Pipeline',
description='A simple pipeline that trains a model.'
)
def simple_pipeline():
# Define your pipeline steps here
pass
if __name__ == '__main__':
kfp.compiler.Compiler().compile(simple_pipeline, 'simple_pipeline.zip')
2. Upload the Pipeline:
After compiling your pipeline into a .zip file, you can upload it to the dashboard via the Pipelines UI. Click “Create Pipeline” and select the compiled pipeline file.
3. Run the Pipeline:
Once uploaded, you can start the pipeline by clicking “Start” from the UI. You will be able to track the progress of the pipeline as it runs.
Best Practices
To get the most out of Kubeflow, here are some best practices:
- Optimize Pipelines for Performance: Minimize resource usage and optimize pipeline components for faster execution. This is particularly important for large-scale training jobs.
- Manage Resources Efficiently: It leverages Kubernetes to manage resources. Make sure to set resource limits (CPU, GPU) to prevent bottlenecks and ensure efficient use of cluster resources.
- Version Your Models: Use versioning to keep track of different versions of your models and experiments. This is particularly useful for testing and improving models over time.
- Scale and Automate: Leverage Kubernetes’ native scalability features to automatically scale your pipeline components based on load, and use Katib for hyperparameter tuning.
Conclusion
Kubeflow provides a powerful and flexible solution for managing machine learning workflows on Kubernetes. By leveraging Kubernetes’ scalability and resource management capabilities, It allows data scientists and engineers to automate and scale their machine learning processes efficiently.
As you gain more experience, you can explore advanced features like hyperparameter tuning with Katib, model serving with KFServing, and distributed training with custom operators. The Kubeflow ecosystem is growing quickly, and with Kubernetes at its core, it is well-suited for the needs of modern ML workloads.
Frequently Asked Questions (FAQ’s)
What is Kubeflow?
Kubeflow is an open-source platform designed to run machine learning (ML) workflows on Kubernetes. It provides tools to manage the entire ML lifecycle, from data processing and model training to deployment and monitoring, all while leveraging Kubernetes' scalability and infrastructure management.
Why should I use Kubeflow for machine learning?
Kubeflow simplifies the deployment and management of ML workflows by providing a set of integrated tools for each stage of the ML pipeline. It helps with scaling ML workloads, automating tasks, ensuring reproducibility, and managing resources efficiently. It's particularly useful for teams working with Kubernetes in production environments.
Can I use Kubeflow with any ML framework?
Yes, Kubeflow supports a variety of machine learning frameworks, including TensorFlow, PyTorch, MXNet, and more. You can create custom components for different frameworks or use pre-built components for popular frameworks.
How do I deploy a machine learning model with Kubeflow?
To deploy an ML model in Kubeflow, you typically use KFServing, which provides model serving capabilities. Once your model is trained, you can deploy it using Kubernetes resources and automatically scale the model based on traffic.
How do I monitor and track machine learning models in Kubeflow?
Kubeflow integrates with tools like Kubeflow Pipelines for monitoring workflows, and Prometheus or Grafana can be used for more detailed monitoring of your Kubernetes cluster and ML models. You can track metrics such as model accuracy, training progress, and resource usage.
